Use AMB in Blueprints

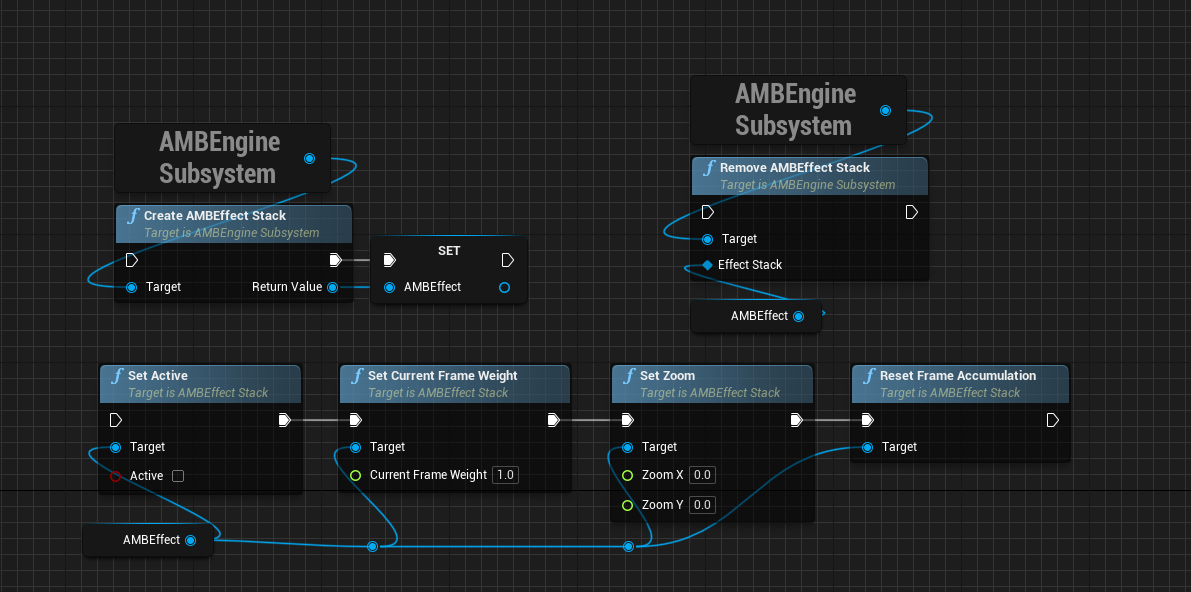

Here’s all the available nodes in Blueprint!
AMBEngine Subsystem

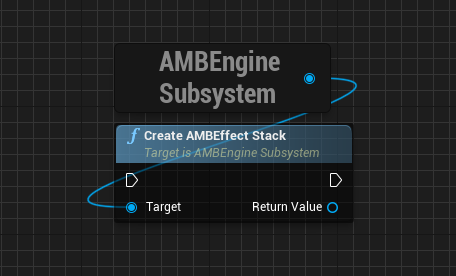

Create AMBEffect Stack
Description:
This will create an AMB effect that will be tracked by the subsystem.
Target is AMBEngine Subsystem
Note:
It is recommended this to be saved into an UPROPERTY variable or a variable in your blueprint, as the AMB system will not prevent this from being garbage collected!!
This also means that if the actor the variable lives on gets destroyed, the effect will disappear on the next GC update.
Inputs:
- In - Exec
- Target - AMBEngine Subsystem
Outputs:
- Out - Exec
- Return Value - AMBEffect Stack

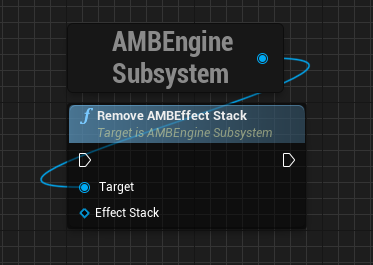

Remove AMBEffect Stack
Description:
This will delete the effect stack and make all references NULL.
Target is AMBEngine Subsystem
Inputs:
- In - Exec
- Target - AMBEngine Subsystem
- Effect Stack - AMBEffect Stack
Outputs:
- Out - Exec
AMBEffect Stack
SetActive
Description:
Controls if the effect should be active or not.
Target is AMBEffect Stack
Inputs:
- In - Exec
- Target - AMBEffect Stack
- Active - Boolean
Outputs:
- Out - Exec
SetCurrentFrameWeight
Description:
Sets how much the current frame will affect the accumulation buffer. 1.0f == full weight.
Target is AMBEffect Stack
Inputs:
- In - Exec
- Target - AMBEffect Stack
- Current Frame Weight - Float ( The weight of the current frame. Default: 1.0 )
Outputs:
- Out - Exec
Set Zoom
Description:
Sets how much zoom to apply to the accumulation buffer.
The recommended starting value is 4.
Target is AMBEffect Stack
Inputs:
- In - Exec
- Target - AMBEffect Stack
- Zoom X - Float ( Zoom factor on X axis. Default: 0.0 )
- Zoom Y - Float ( Zoom factor on Y axis. Default: 0.0 )
Outputs:
- Out - Exec
Reset Frame Accumulation
Description:
Resets the accumulation buffer.
Target is AMBEffect Stack
Inputs:
- In - Exec
- Target - AMBEffect Stack
Outputs:
- Out - Exec
